Ss Mirror Finish 6mm Stainless Steel Plate 2b Finish 202 304 304l Rohs
Product Description
"Mirror surface" refers to the surface state of stainless steel, which can reflect light and illuminate human shadows like a mirror surface. Common stainless steel mirror panels are divided into three types: 6K, 8K, and 10K. Generally it is ordinary polishing, ordinary 8K, fine grinding 8K, 10K. The higher the value, the higher the reflectivity, the higher the brightness, the better the surface quality, and the fewer or no grinding heads.
| Product Name | SS Mirror Finish 6mm Stainless Steel Sheets 2b Finish 202 304 304l Rohs |
| Thickness | 0.3-120mm |
| Width | 600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | NO.1/BA/2B/NO.4/8K/HL |
| Quality test | Mill Test Certificate is supplied with shipment, Third Part Inspection is acceptable |
| Stock or not | enough stock |
| Payment terms | L/C T/T (30%DEPOSIT) |
| Sample | Provided Freely |
| Container Size | 20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP: 12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High) |
| Delivery time | Within 7-10 Working Days |
Chemical Composition
| Grade | C | Si | Mn | P | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | 3.5-5.5 | 16.0-18.0 | - |
| 202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | 4.-6.0 | 17.0-19.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | 19.0-22.0 | 24.0-26.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 17.0-19.0 | - |
| 630 | ≤0.07 | ≤1.0 | ≤1.0 | ≤0.035 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | 0.19-0.22 | 0.24-0.26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | - | 11.5-13.5 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.60 | 16.0-18.0 | - |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elogation(%) | Hardness (HRB) |
| 201 | ≥655 | ≥310 | ≥40 | ≤100 |
| 202 | ≥620 | ≥260 | ≥40 | ≤100 |
| 304 | ≥515 | ≥205 | ≥40 | ≤92 |
| 304L | ≥485 | ≥170 | ≥40 | ≤88 |
| 316 | ≥515 | ≥205 | ≥40 | ≤95 |
| 316L | ≥485 | ≥170 | ≥40 | ≤95 |
| 321 | ≥515 | ≥205 | ≥40 | ≤95 |
| 409 | ≥380 | ≥205 | ≥20 | ≤80 |
| 409L | ≥350 | ≥185 | ≥22 | ≤80 |
| 430 | ≥450 | ≥205 | ≥22 | ≤80 |

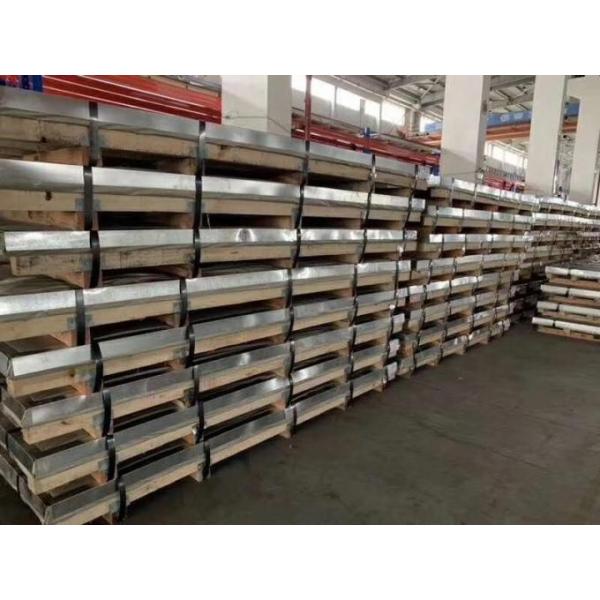

Detail Photos
Surface Treatment
| Surface Finish | Defination |
| 2B | Those finished,after cold rolling,by heat treatment,picking or other equivalent treatment and lastly by cold rolling to given
appropriate luster |
| BA | Those processed with bright heat treatment after cold rolling |
| No.1 | The surface finished by heat treatment and picking or processes corresponding there to after hot rolling |
| No.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R 6001 |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size |
| 8K | A mirror-like reflective surface by polishing with finer abrasives over 800 mesh |
Surface Refrence
| Surface | Characteristic | Processing Technology |
| N0.1 | Original | Pickled after hot rolling |
| 2D | Blunt | Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling |
| 2B | Blurred | Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling + tempering rolling |
| N0.3 | Matte | Polishing and tempering rolling with 100-120 mesh abrasive materials |
| N0.4 | Matte | Polishing and tempering rolling with 150-180 mesh abrasive material |
| NO.240 | Matte | Polishing and tempering rolling with 240 mesh abrasive materials |
| NO.320 | Matte | Polishing and tempering rolling with 320 mesh abrasive materials |
| NO.400 | Matte | Polishing and tempering rolling with 400 mesh abrasive materials |
| HL | Brushed | Grind the surface of the steel belt with an appropriate grinding grain size to make it show a certain longitudinal texture |
| BA | Bright | The surface is annealed and shows high reflectivity |
| 6K | Mirror | Rough grinding and polishing |
| 8K | Mirror | Fine grinding and polishing |
Certification
Packing & Shipping
| Packing | PVC waterproof paper packed , strong sea-worthy wooden package and steel plate packing |
| Shipping port | Shanghai |
| | Length: ≤6m, loaded in 20GP Container |
| Length: ≤12m, loaded in 40GP Container |
| Size of 20GP Container (inside :5898*2352*2393mm) |
| Size of 40GP Container (inside:12032*2352*2393mm) |
| Size of 40HQ Container (inside:12032*2352*2698mm) |
| Delivery time | Within 7-15 days, depending on the situation |
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2012. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
